E1034S.18.10
ActivePrysmian Group

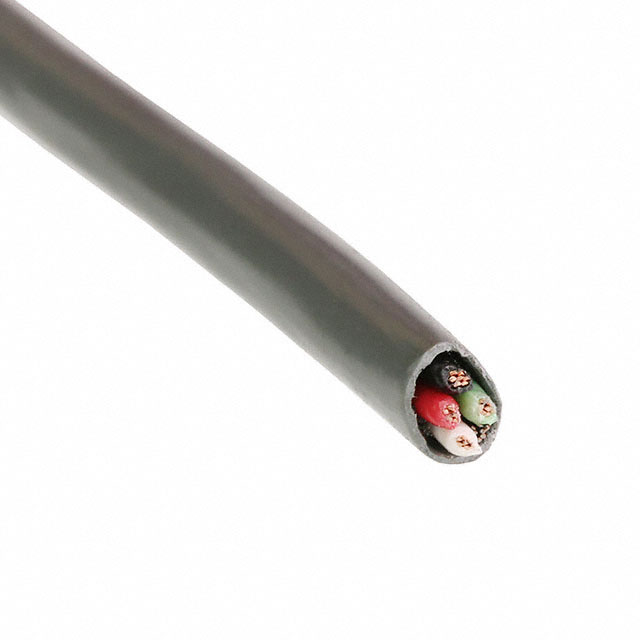

CABLE 4COND 18AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
E1034S.18.10
ActivePrysmian Group
CABLE 4COND 18AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E1034S.18.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 26 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord |
| Jacket (Insulation) Diameter [diameter] | 0.187 in |
| Jacket (Insulation) Diameter [diameter] | 4.75 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 4 |
| Ratings | ASTM B-3 |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 224.60 | |
| 3 | $ 207.79 | |||
| 5 | $ 200.58 | |||
| 7 | $ 195.78 | |||
| 10 | $ 190.97 | |||
| 25 | $ 178.96 | |||
| 50 | $ 169.35 | |||
Description
General part information
E1034S.18.10
4 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
