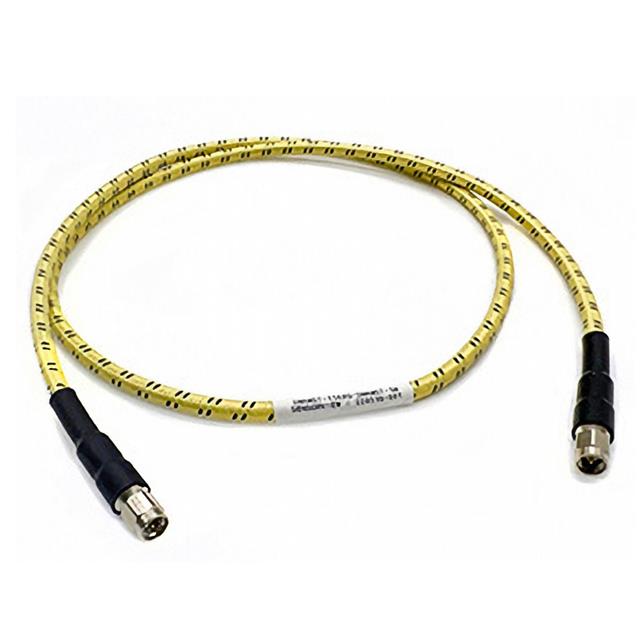

SMA(M)_ST-11A8GD-SMA(M)_ST-36IN
ActiveSensorview America
CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA(M)_ST-11A8GD-SMA(M)_ST-36IN
ActiveSensorview America
CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA(M)_ST-11A8GD-SMA(M)_ST-36IN |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | 5.8 mm OD |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 8 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -50 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMA(M)_ST-11A8GD-SMA(M)_ST-36IN
Cable Assembly Coaxial SMA to SMA 5.80mm OD Coaxial Cable 36.00" (914.40mm)
