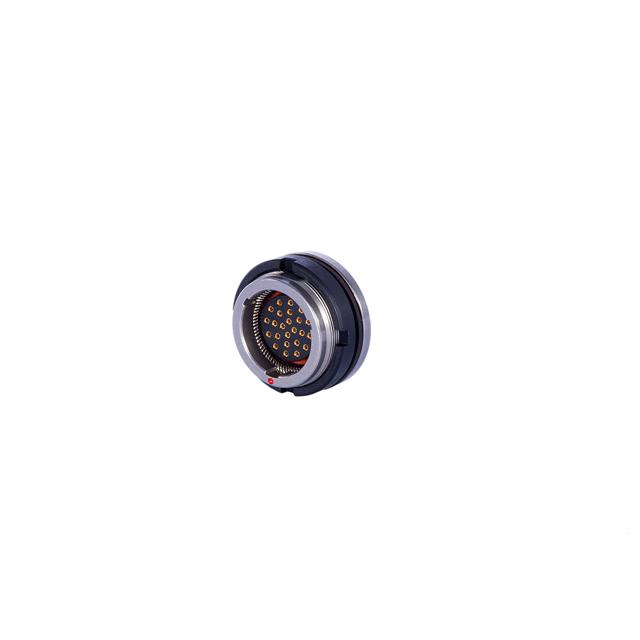

MMC L 7N24FSPMA
ActiveBERNIER Connect
BREAKAWAY RECEPTACLE 24 CTS FOR
Deep-Dive with AI
Search across all available documentation for this part.
MMC L 7N24FSPMA
ActiveBERNIER Connect
BREAKAWAY RECEPTACLE 24 CTS FOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MMC L 7N24FSPMA |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Board Guide |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 24 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 215.91 | |
| 10 | $ 183.55 | |||
Description
General part information
MMC L 7N24FSPMA
24 Position Circular Connector Receptacle, Female Sockets Solder
