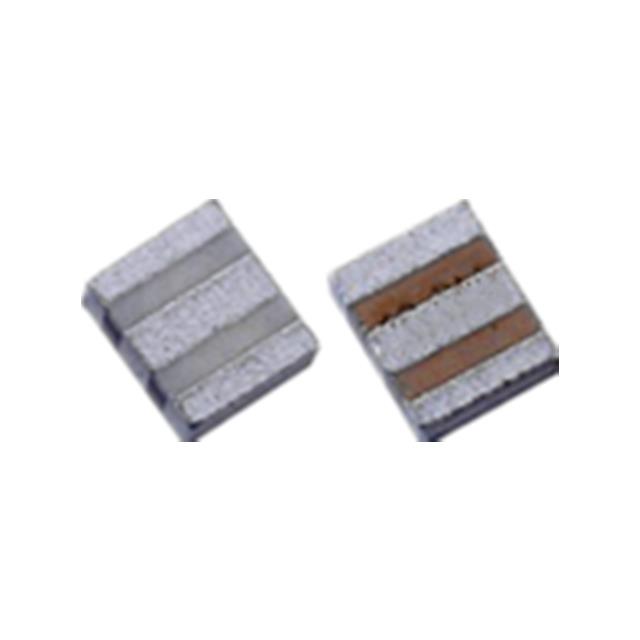

CM48M00000S005
ActiveTGS
CERAMIC RES 48MHZ 5PF SMD3731
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CM48M00000S005
ActiveTGS
CERAMIC RES 48MHZ 5PF SMD3731
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CM48M00000S005 |
|---|---|
| Capacitance | 5 pF |
| Features | Built in Capacitor |
| Frequency | 48 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Impedance | 40 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 3.7 mm |
| Size / Dimension [x] | 0.146 in |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Type | Ceramic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.27 | |
Description
General part information
CM48M00000S005
48 MHz Ceramic Resonator Built in Capacitor 5 pF ±0.3% 40 Ohms -25°C ~ 85°C Surface Mount
