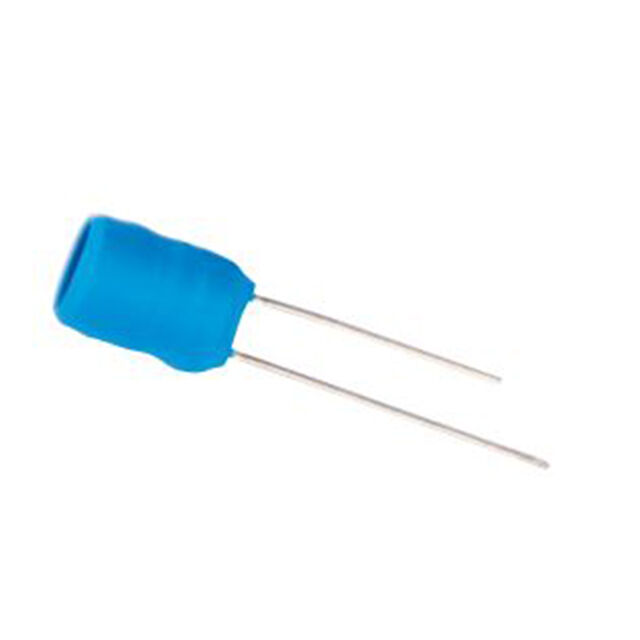

RL-5480HC-4-82
ActiveRenco Electronics, Inc.
FIXED IND 82UH 2.85A 100MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RL-5480HC-4-82
ActiveRenco Electronics, Inc.
FIXED IND 82UH 2.85A 100MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RL-5480HC-4-82 |
|---|---|
| Current - Saturation (Isat) | 6.18 A |
| Current Rating (Amps) | 2.85 A |
| DC Resistance (DCR) | 100 mOhm |
| Frequency - Self Resonant | 3.95 MHz |
| Height - Seated (Max) [Max] | 18 mm |
| Height - Seated (Max) [Max] [z] | 0.709 " |
| Inductance | 82 µH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 12.2 mm |
| Size / Dimension [diameter] | 0.48 " |
| Supplier Device Package | Radial |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.54 | |
| 10 | $ 2.16 | |||
| 25 | $ 1.99 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.44 | |||
| Tape & Box (TB) | 700 | $ 1.36 | ||
| 1400 | $ 1.27 | |||
| 3500 | $ 1.23 | |||
| 7000 | $ 1.19 | |||
Description
General part information
RL-5480HC-4-82
82 µH Unshielded Drum Core, Wirewound Inductor 2.85 A 100mOhm Max Radial, Vertical Cylinder
