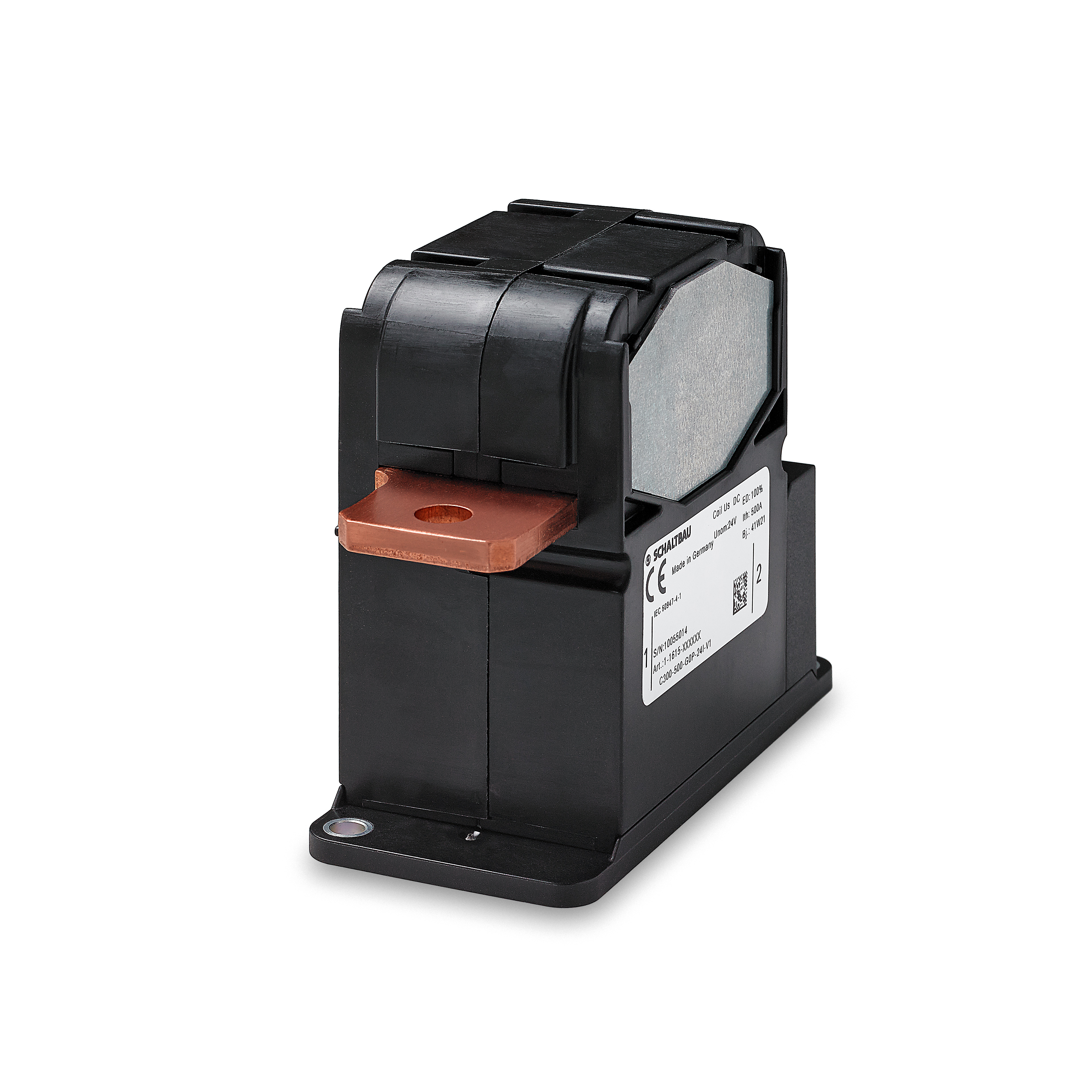

1-1615-355023
ActiveSchaltbau
C300 1 POLE BI-DIRECTIONAL DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1615-355023
ActiveSchaltbau
C300 1 POLE BI-DIRECTIONAL DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1615-355023 |
|---|---|
| Coil Voltage [Max] | 24 VDC |
| Coil Voltage [Min] | 12 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 500 A |
| Features | Auxillary Contacts, Economizer |
| Must Operate Voltage | 16.5 VDC |
| Must Release Voltage | 13.6 VDC |
| Operate Time | 33 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 1000 VDC |
| Termination Style | Screw Terminal, Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 190.80 | |
| 10 | $ 155.64 | |||
Description
General part information
1-1615-355023
C300 1 POLE BI-DIRECTIONAL DC
