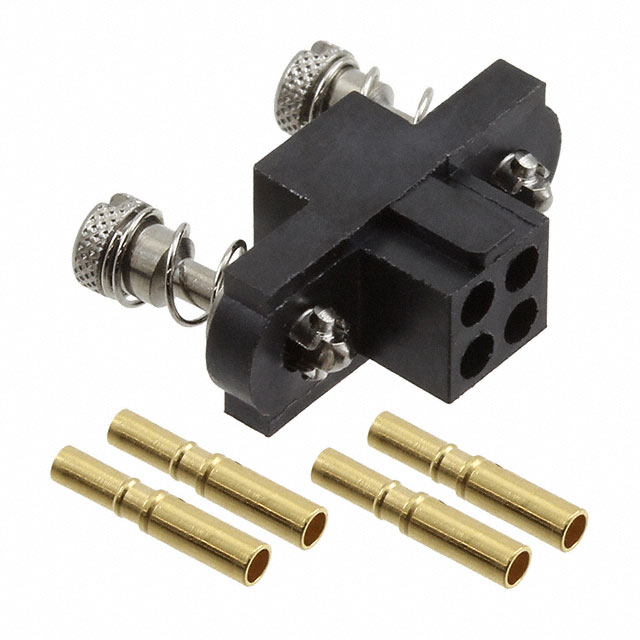

M80-4C10405FC - M80-4C10405FC

M80-4C10405FC

Active
Harwin Inc.

2+2 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM80, M83 Series Spec Sheet+2
M80-4C10405FC - M80-4C10405FC

M80-4C10405FC

Active
Harwin Inc.

2+2 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetM80, M83 Series Spec Sheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-4C10405FC
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
FeaturesPolarizing Key, Jackscrews
Mounting TypeFree Hanging (In-Line)
Number of Positions4
Number of Rows2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 12.90
10$ 11.44
25$ 11.00
50$ 10.56
100$ 9.97
250$ 9.09
500$ 8.50
1000$ 7.80
NewarkEach 50$ 11.50
100$ 11.21
250$ 10.05
500$ 9.47
1000$ 8.31
2500$ 7.90

Description

General part information

M80-4C10405FC

4 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
