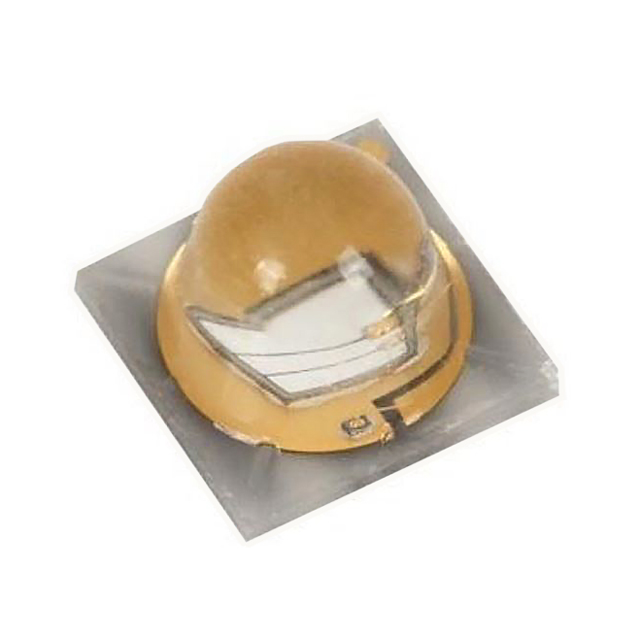

CUN86B1B
ActiveSETi/Seoul Viosys
385NM NZ5 PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUN86B1B
ActiveSETi/Seoul Viosys
385NM NZ5 PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUN86B1B |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 45 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
| Wavelength | 385 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.77 | |
| 10 | $ 3.37 | |||
| 100 | $ 2.76 | |||
| Digi-Reel® | 1 | $ 4.77 | ||
| 10 | $ 3.37 | |||
| 100 | $ 2.76 | |||
| Tape & Reel (TR) | 500 | $ 2.22 | ||
| 1000 | $ 2.13 | |||
| 1500 | $ 2.08 | |||
| 2500 | $ 2.03 | |||
| 3500 | $ 2.00 | |||
| 5000 | $ 1.99 | |||
Description
General part information
CUN86B1B
Ultraviolet (UV) Emitter 385nm 3.5V 700mA 45° 1414 (3535 Metric)
