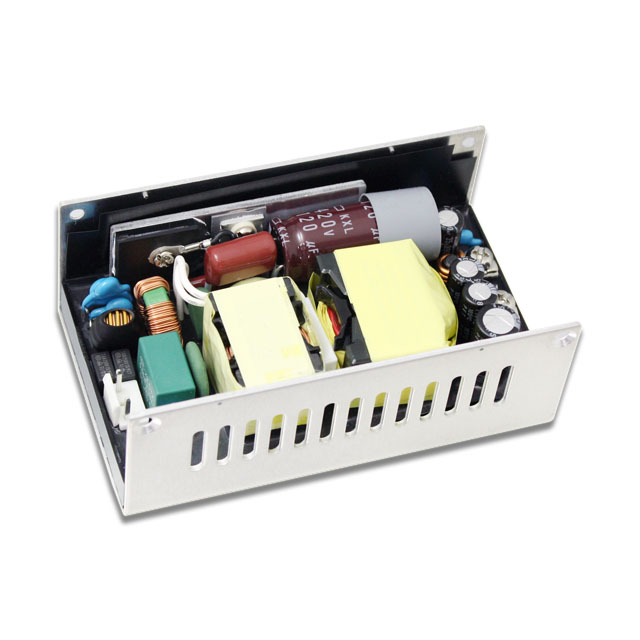

ARF240U-24S
ActiveARCH Electronics Corp
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Search across all available documentation for this part.
ARF240U-24S
ActiveARCH Electronics Corp
AC/DC CONVERTER 24V 240W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARF240U-24S |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 10 A |
| Efficiency | 93 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.1 " |
| Size / Dimension [x] | 104.1 mm |
| Size / Dimension [y] | 2.46 " |
| Size / Dimension [y] | 62.5 mm |
| Size / Dimension [z] | 39.1 mm |
| Size / Dimension [z] | 1.54 " |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 148.35 | |
| 10 | $ 134.14 | |||
| 50 | $ 95.13 | |||
| 100 | $ 91.32 | |||
Description
General part information
ARF240U-24S
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
