RJE36188214H
ActiveAmphenol ICC (Commercial Products)

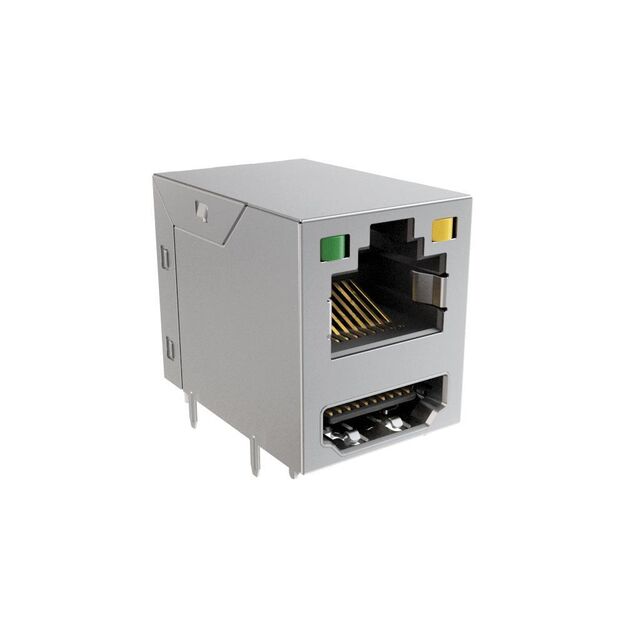

STACKED RJ45 OVER HDMI , WITH LE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJE36188214H
ActiveAmphenol ICC (Commercial Products)
STACKED RJ45 OVER HDMI , WITH LE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJE36188214H |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.152 Ám |
| Contact Finish Thickness | 6 Áin |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | 90 ° |
| Ratings | Cat5, Cat3 |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.18 | |
| 10 | $ 2.89 | |||
| 25 | $ 2.73 | |||
| 50 | $ 2.67 | |||
| 100 | $ 2.54 | |||
| 250 | $ 2.22 | |||
| 450 | $ 2.16 | |||
| 950 | $ 1.84 | |||
| 2400 | $ 1.72 | |||
Description
General part information
RJE36188214H
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded Cat3, Cat5
