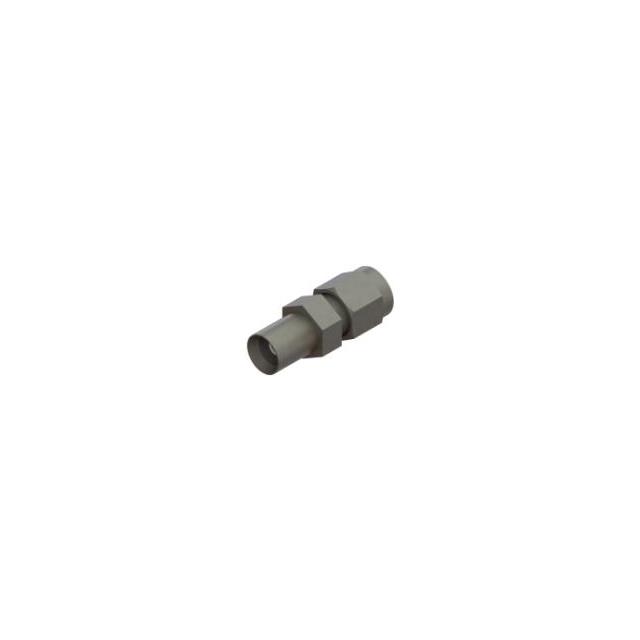

SF1122-6106
ActiveAmphenol SV Microwave
CONN ADAPT BZ JACK TO SMA PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF1122-6106
ActiveAmphenol SV Microwave
CONN ADAPT BZ JACK TO SMA PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1122-6106 |
|---|---|
| Adapter Series | SMA to BZ |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BZ Jack, Female Socket |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 2 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 167.36 | |
Description
General part information
SF1122-6106
Adapter Coaxial Connector BZ Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
