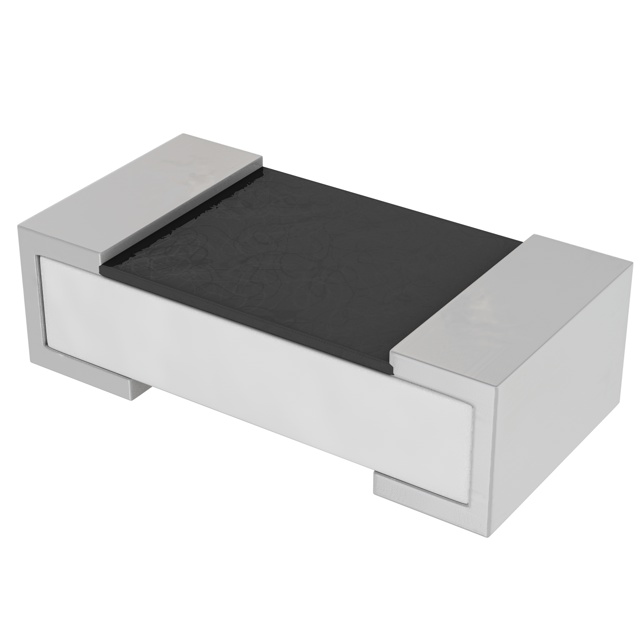

AA0402FR-073M24L

Active

YAGEO

RES SMD 3.24M OHM 1% 1/16W 0402

Search across all available documentation for this part.

Active

YAGEO

RES SMD 3.24M OHM 1% 1/16W 0402

Technical Specifications

Parameters and characteristics for this part

Specification	AA0402FR-073M24L

Composition	Thick Film
Features	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Height - Seated (Max) [Max]	0.015 in
Height - Seated (Max) [Max]	0.37 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.0625 W
Power (Watts)	0.063 W
Ratings	AEC-Q200
Resistance	3.24 MOhms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient	150 ppm/°C
Tolerance	1 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.01

General part information

3.24 MOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thick Film
