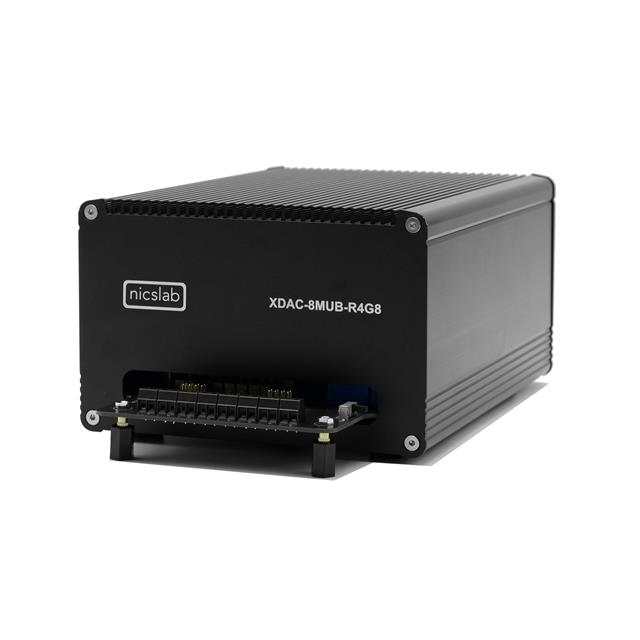

XDAC-8MUB-R4G8
ActiveNicslab
SMU 8CH 18V 500MA CC CV
Deep-Dive with AI
Search across all available documentation for this part.
XDAC-8MUB-R4G8
ActiveNicslab
SMU 8CH 18V 500MA CC CV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XDAC-8MUB-R4G8 |
|---|---|
| Current - Output [Max] | 500 mA |
| Current - Output [Min] | 0 A |
| Features | Bipolar (+, – & GND) Power Supply Required, Bipolar, LAN Interface, Control Voltage, Control Current, Programmable (GUI, SCPI), Premium Option (16-bit Range Control) |
| Number of Outputs | 8 |
| Power (Watts) | 90 W |
| Type | Bench (DC to DC) |
| Voltage - Output [Max] | 18 V |
| Voltage - Output [Min] | -18 V |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | -18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XDAC-8MUB-R4G8
-18 ~ 18V Output Bench (DC to DC) Power Supply 0 ~ 500mA Output 90W Features Bipolar (+, – & GND) Power Supply Required, Control Voltage, Control Current, Programmable (GUI, SCPI), LAN Interface, Bipolar, Premium Option (16-bit Range Control)
Documents
Technical documentation and resources
No documents available
