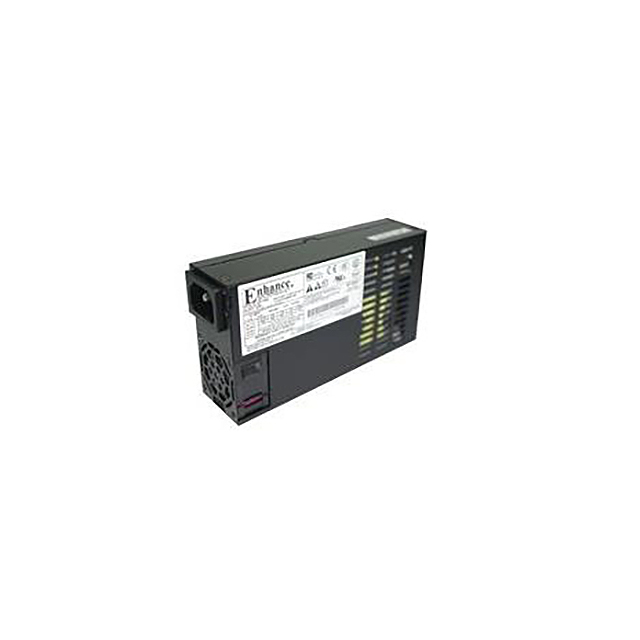

ENP-7025B-B
ActiveEnhance Electronics
AC/DC CNVT 3.3V 5V 2X12V -12V
Deep-Dive with AI
Search across all available documentation for this part.
ENP-7025B-B
ActiveEnhance Electronics
AC/DC CNVT 3.3V 5V 2X12V -12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ENP-7025B-B |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CCC, NEMKO, FCC, CB, cURus, cUL |
| Current - Output 1 | 13 A |
| Current - Output 2 | 14 A |
| Current - Output 3 | 18 A |
| Current - Output 4 | 18 A |
| Current - Output 5 | 300 mA |
| Efficiency | 83.56 % |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 549 W |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [y] | 81.5 mm |
| Size / Dimension [y] | 3.21 in |
| Size / Dimension [z] | 40.5 mm |
| Size / Dimension [z] | 1.59 " |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 [custom] | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 88.00 | |
Description
General part information
ENP-7025B-B
Enclosed AC DC Converters 5 Output 3.3V 5V 12V 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
