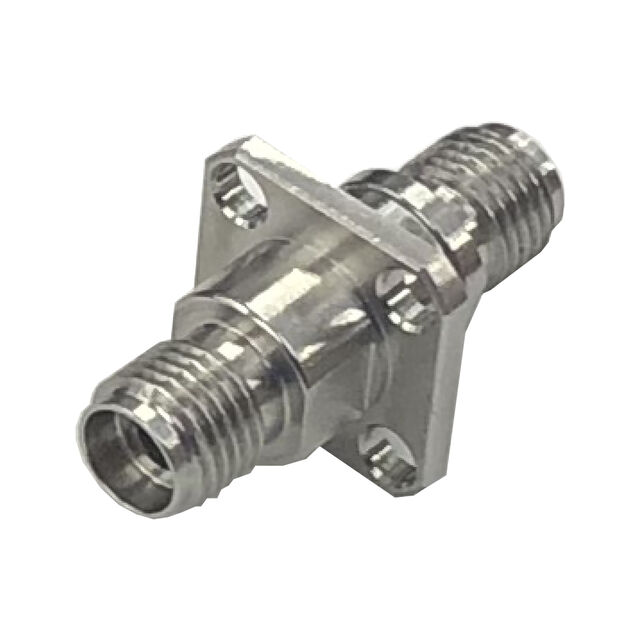

K292-PA-JJ
ActiveTo-Conne Co., Ltd. (TYC)
K292-PA-JJ@2.92MM ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
K292-PA-JJ
ActiveTo-Conne Co., Ltd. (TYC)
K292-PA-JJ@2.92MM ADAPTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K292-PA-JJ |
|---|---|
| Adapter Series [Max] | 2.92 mm |
| Adapter Series [Min] | 2.92 mm |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | RPC-2.92 Jack, Female Socket |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 115.21 | |
| 10 | $ 103.69 | |||
| 25 | $ 98.50 | |||
| 50 | $ 93.58 | |||
Description
General part information
K292-PA-JJ
Adapter Coaxial Connector RPC-2.92 Jack, Female Socket To RPC-2.92 Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
