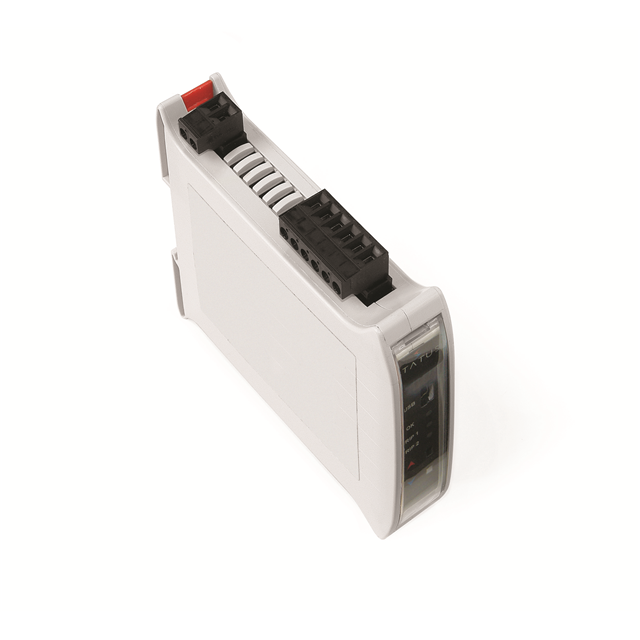

SEM1700
ActiveStatus Instruments Ltd
SIGNAL CONDITIONER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SEM1700
ActiveStatus Instruments Ltd
SIGNAL CONDITIONER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SEM1700 |
|---|---|
| Features | Relay Output (2) |
| Input Range (Additional) [Max] | 480 Ohm, 1760 °C |
| Input Range (Additional) [Min] | -200 °C, 0 Ohm |
| Input Range (Current, Voltage) [custom] | 30 mA, -30 mA |
| Input Range (Current, Voltage) [custom] | 11 V, -11 V |
| Input Type | Temperature, Current, Resistance, Voltage |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Range [Max] | 20 mA, 10 V |
| Output Range [Min] | 0 mA, 0 V |
| Output Type | Current, Voltage |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply | 20 V, 240 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 258.20 | |
Description
General part information
SEM1700
SIGNAL CONDITIONER
Documents
Technical documentation and resources
