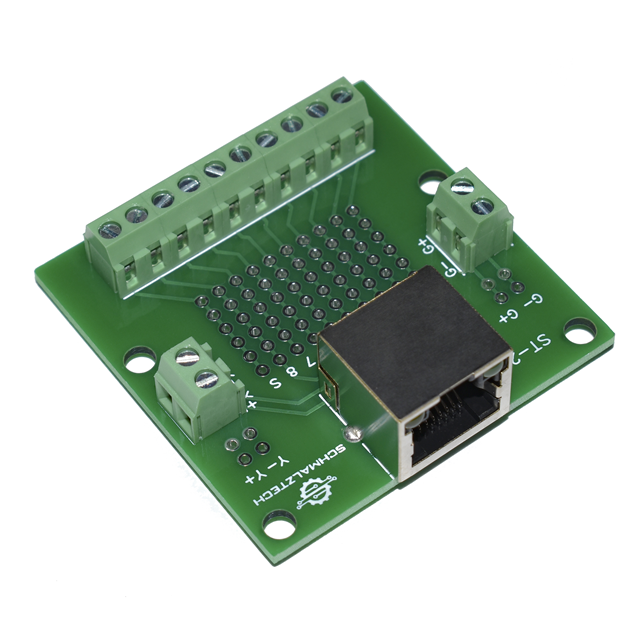

ST-216
ActiveSchmalzTech, LLC
RJ45 W/ LED BREAKOUT BOARD
Deep-Dive with AI
Search across all available documentation for this part.
ST-216
ActiveSchmalzTech, LLC
RJ45 W/ LED BREAKOUT BOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-216 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Material | FR4 Epoxy Glass |
| Number of Positions | 13 |
| Package Accepted | RJ45 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Proto Board Type | Connector to Terminal Block |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ST-216
RJ45 W/ LED BREAKOUT BOARD
Documents
Technical documentation and resources
No documents available
