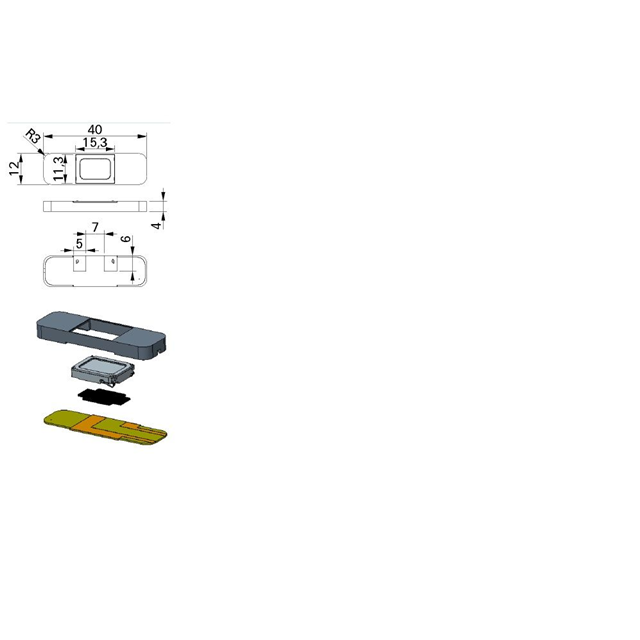

BOX1-18082-7SP
ActiveSeltech
SPEAKER 8OHM 800MW TOP PORT 72DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BOX1-18082-7SP
ActiveSeltech
SPEAKER 8OHM 800MW TOP PORT 72DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BOX1-18082-7SP |
|---|---|
| Efficiency - dBA | 72 dBA |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 900 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 900 Hz |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 0.8 W |
| Shape | Rectangular |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Enclosure Included, General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.00 | |
| 20 | $ 8.25 | |||
| 100 | $ 7.25 | |||
| 500 | $ 6.25 | |||
Description
General part information
BOX1-18082-7SP
8 Ohms General Purpose, Enclosure Included Speaker 800 mW 900 Hz ~ 10 kHz Top Rectangular
