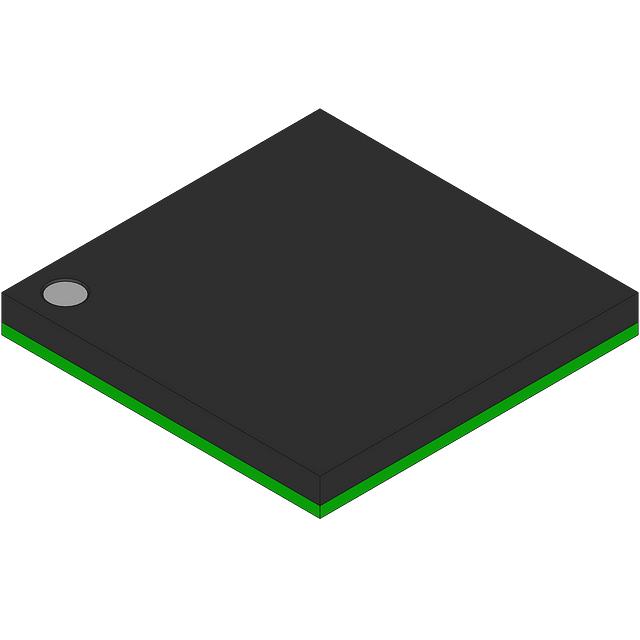

LM3S2620-IBZ25-A2
ObsoleteLuminary Micro
IC MCU 32BIT 128KB FLASH 108BGA
Deep-Dive with AI
Search across all available documentation for this part.
LM3S2620-IBZ25-A2
ObsoleteLuminary Micro
IC MCU 32BIT 128KB FLASH 108BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LM3S2620-IBZ25-A2 |
|---|---|
| Connectivity | QEI, SPI, SSI, IrDA, Microwire, I2C, UART/USART, CANbus |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Mounting Type | Surface Mount |
| Number of I/O | 52 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 108-LFBGA |
| Program Memory Size | 128 KB |
| Program Memory Type | FLASH |
| Speed | 25 MHz |
| Supplier Device Package | 108-BGA (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 2.75 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 25 | $ 12.01 | |
| 184 | $ 16.11 | |||
Description
General part information
LM3S2620-IBZ25-A2
ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 2000 Microcontroller IC 32-Bit Single-Core 25MHz 128KB (128K x 8) FLASH 108-BGA (10x10)
Documents
Technical documentation and resources
No documents available
