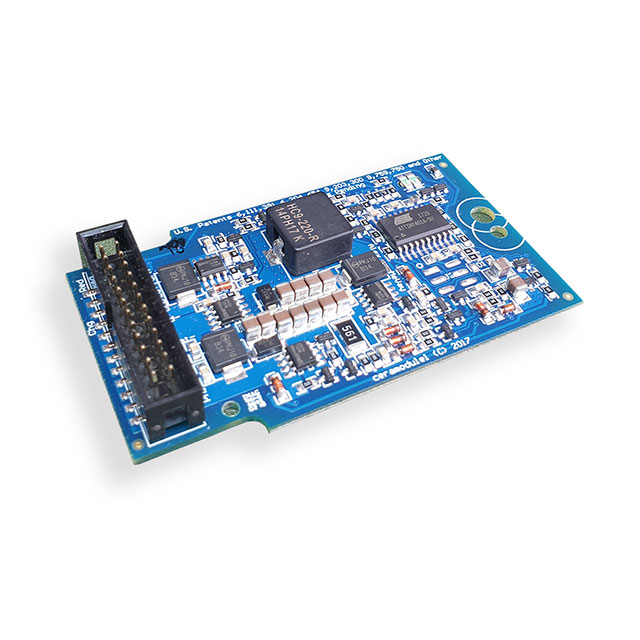

GV-5-MOD-LI MPPT
ActiveGenasun
BATT CHRGR SOLAR 11.1V 14.8V 5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsGV-5-MOD Specification
GV-5-MOD-LI MPPT
ActiveGenasun
BATT CHRGR SOLAR 11.1V 14.8V 5A
Deep-Dive with AI
DocumentsGV-5-MOD Specification
Technical Specifications
Parameters and characteristics for this part
| Specification | GV-5-MOD-LI MPPT |
|---|---|
| Battery Chemistry | Lithium-Ion |
| Charge Current - Max | 5 A |
| Features | 5A LVD Load Output, Dual firmware selectable for 3S or 4S Li-ion |
| Mounting Type | Custom |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 75 W |
| Size / Dimension [x] | 3.28 in |
| Size / Dimension [x] | 83.2 mm |
| Size / Dimension [y] | 1.88 " |
| Size / Dimension [y] | 47.8 mm |
| Size / Dimension [z] | 12.2 mm |
| Size / Dimension [z] | 0.48 in |
| Termination Style | Rectangular Connector |
| Type | Solar Charger |
| Voltage - Input [Max] | 27 V |
| Voltage - Input [Min] | 0 V |
| Voltage - Nominal [Max] | 14.8 V |
| Voltage - Nominal [Min] | 11.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 99.00 | |
| 50 | $ 84.15 | |||
Description
General part information
GV-5-MOD-LI MPPT
Solar Charger Battery Charger 11.1V/14.8V 5A
