6A-201DB05-066
ActiveENG ELECTRIC CO., LTD

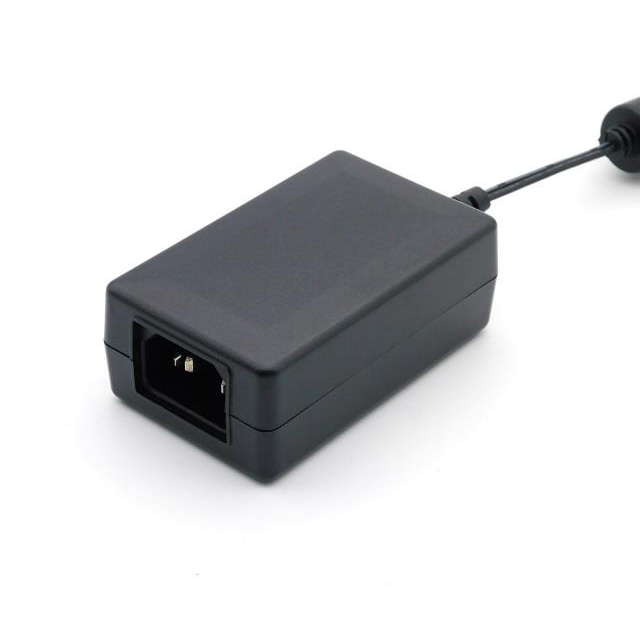

AC/DC DESKTOP ADAPTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6A-201DB05-066
ActiveENG ELECTRIC CO., LTD
AC/DC DESKTOP ADAPTER 5V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6A-201DB05-066 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, PSE, FCC, CSA, UKCA, AS/NZS, CCC, IEC, RCM, CB |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 20 W |
| Region Utilized | International |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Standard Number | 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Book | 1 | $ 16.98 | |
| 10 | $ 16.00 | |||
| 240 | $ 13.83 | |||
| 560 | $ 12.54 | |||
Description
General part information
6A-201DB05-066
5V 20 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
