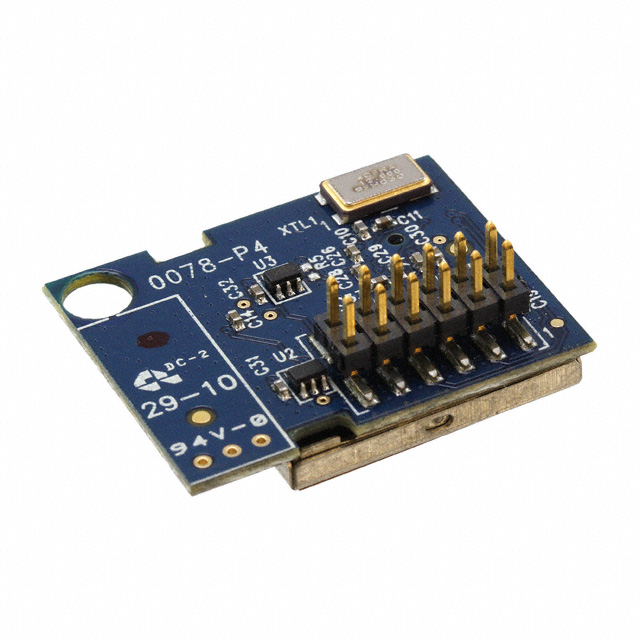

AW24RUH-H2-AA
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZU.FL TH
Deep-Dive with AI
Search across all available documentation for this part.
AW24RUH-H2-AA
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZU.FL TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AW24RUH-H2-AA |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving [Max] | 23 mA |
| Current - Receiving [Min] | 20 mA |
| Current - Transmitting | 195 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK, DSSS |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Module |
| Power - Output | 21 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -93 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | CYRF7936 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.56 | |
| 10 | $ 26.36 | |||
| 25 | $ 24.16 | |||
| 100 | $ 22.33 | |||
Description
General part information
AW24RUH-H2-AA
General ISM > 1GHz Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
Documents
Technical documentation and resources
No documents available
