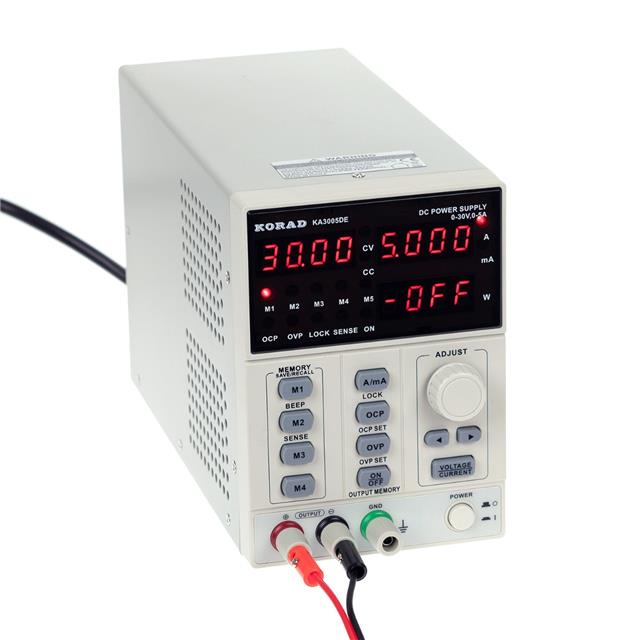

KA3005DE
ActiveSRA Soldering Products
KA3005DE DIGITAL CONTROL DC LINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KA3005DE |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.5% + 5mA, 0.5% + 20mV |
| Current - Output [Max] | 5 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 0.1 %, 3 mA |
| Current Regulation - Load | 5 mA, 0.1 % |
| Display Type | LED |
| Features | Regulated, Adjustable or Fixed Selection Switch |
| Number of Characters | 8 |
| Number of Outputs | 1 |
| Ripple [Max] | 3 mV rms |
| Ripple [Min] | 2 mV rms |
| Size / Dimension [x] | 260.35 mm |
| Size / Dimension [x] | 10.25 " |
| Size / Dimension [y] | 6.1 in |
| Size / Dimension [y] | 154.94 mm |
| Size / Dimension [z] | 4.3 in |
| Size / Dimension [z] | 109.22 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply [Max] | 220 VAC |
| Voltage - Supply [Min] | 110 VAC |
| Voltage Regulation - Line | 0.01 %, 3 mV |
| Voltage Regulation - Load | 2 mV, 0.01 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 114.99 | |
Description
General part information
KA3005DE
0 ~ 30V Output Bench (AC to DC) Power Supply LED 0 ~ 5A Output Features Adjustable or Fixed Selection Switch, Regulated
